고객의 요구조건및 CAPACITY에 맞추어 오카와라와 공동 설계 하여 국내에서 제작 판매품이며,
의뢰시 DESIGN CONDITION을 작성하여 주시면 빠르고 정확한 설계 및 견적대응이 가능합니다.

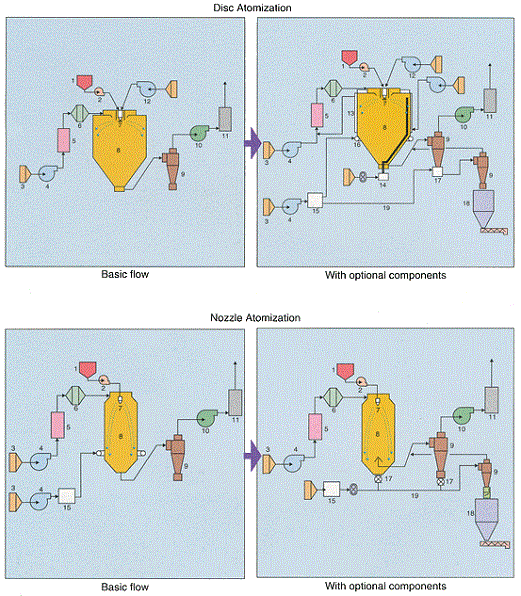

1) OPEN TYPE
For Foods, Pharmaceuticals, Chemicals
For Fine Ceramics, Chemicals
|
1)  Liquid Tank |
13) Air Jacket |
2)  Liquid Pump |
14) Air Sweeper |
3)  Air Filter |
15) Dehumidifier |
4)  Forced Draft Pan |
16) Secondary Cooling Fan |
5)  Hot Air Heater |
17) Product Discharge
(Double Damper,
Rotary Valve,
Vortex Air Lock) |
6)  Hot Air Filter |
18) Product Tank |
7)  Atomizer(Disc, Nozzle) |
19) Product Transportation
(Pneumatic conveyor,
Bucket conveyor) |
8)  Drying chamber |
20) Sifter |
9)  Cyclon |
21) Heat exchanger |
10)  Exhaust Fan |
22) Heater |
|
11)  Dust collector
(Bagfilter, Scrubber) |
23) Condenser |
| 12) Primary Cooling Fan |
24) Chilling unit |
2) SPECIAL TYPE(오키와라 협의에 따라 주문제작내용 변경 기능)
FLUIDIZED BED GRANULATION SPRAY DRYER
CLOSED CYCLE SPRAY DRYER
SPRAY BAG DRYER
|
1) Liquid Tank |
13) Air Jacket |
| 2) Liquid Pump |
14) Air Sweeper |
| 3) Air Filter |
15) Dehumidifier |
| 4) Forced Draft Pan |
16) Secondary Cooling Fan |
| 5) Hot Air Heater |
17) Product Discharge
(Double Damper,
Rotary Valve,
Vortex Air Lock) |
| 6) Hot Air Filter |
18) Product Tank |
| 7) Atomizer(Disc, Nozzle) |
19) Product Transportation
(Pneumatic conveyor,
Bucket conveyor) |
| 8) Drying chamber |
20) Sifter |
| 9) Cyclon |
21) Heat exchanger |
| 10) Exhaust Fan |
22) Heater |
|
11) Dust collector
(Bagfilter, Scrubber) |
23) Condenser |
| 12) Primary Cooling Fan |
24) Chilling unit |
